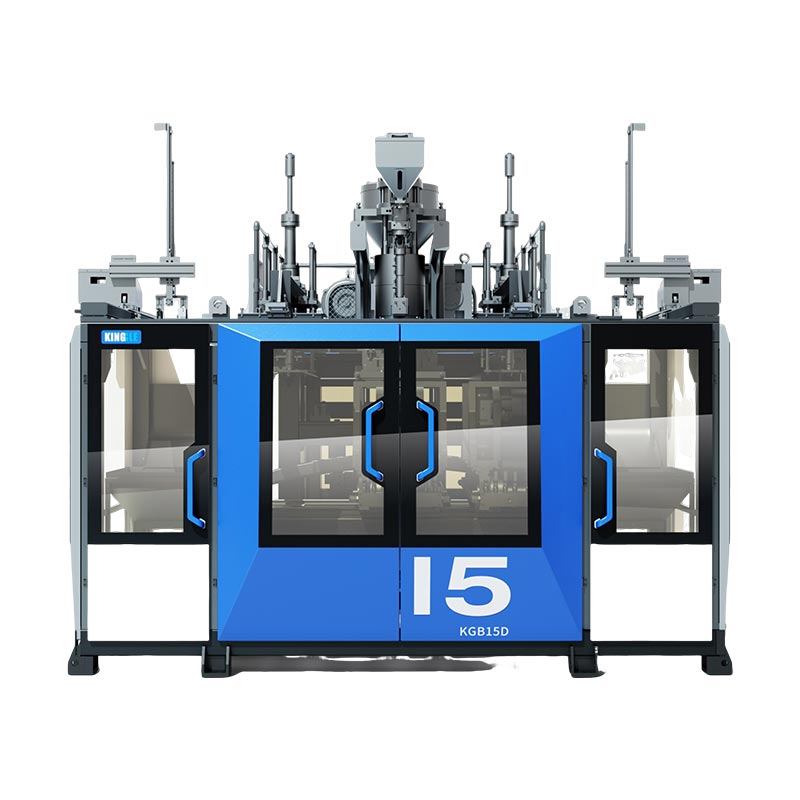

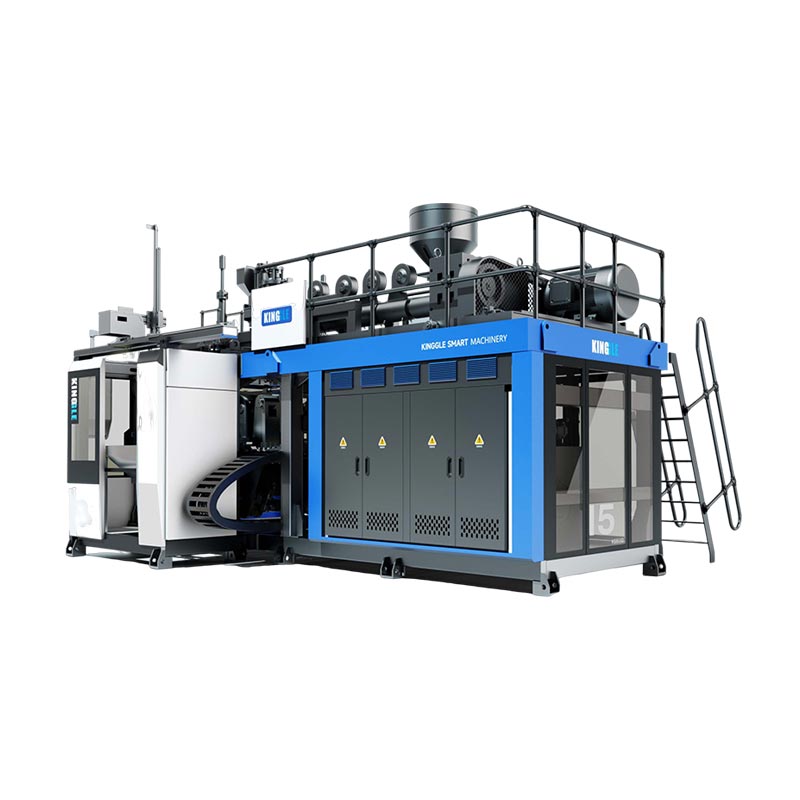

15l Stan Station pupuhi te miihini miihini

Model:KGH15D

Whakanohia to whakaputanga pounamu me te KWS15D, 15l Stan Station e pupuhi ana i te miihini kirihou kirihou ki nga tohu miihini hou! He tino tika mo te 10L pupuhi aunoa i nga miihini miihini pera i te 10L me te 15L Botles, ka awhina koe ki te whakahaere i te maakete me te putanga kounga o runga.

Rorohiko: 15lTaumaha: 18.5t

Tuku Uiui

Whakaahuatanga Hua Specification Application

Whakanohia to whakaputanga pounamu me te KGh15D, he kounga teitei 15l te pupuhi i te miihini hangai hei whakanui i te pupuhi pounamu kirihou Te hangai ki nga mea teitei. I hoahoatia mo nga tono penei i te 10L me te 15L Bottles, Ka whakarite te KGh15D i te whakaputa pai i nga ipu kounga nui me tino riterite. Ahakoa mo te hanga-nui-rahi, ritenga ranei Nga tono, ka tukuna e tenei miihini te whakaputa runga-tier, hei awhina i a koe Tuhinga o mua. Ma nga waahanga matatau me nga mahi pono, te Ko te KGh15D e tuku ana i te otinga tino pai mo nga umanga e rapu ana kia pai ake Te whakaputanga me te whakarei ake i te kounga hua.

Nga waahanga me nga painga

Whakanuihia to whakaputanga me o maatau miihini-a-ringa-rua, i hangaia mo nga ipu tae atu ki te 15l. Ma te whirihora ngawari (2, 3, e 4 ranei nga huinga upoko-mate), ka whai hua te rahi o nga ipu ki nga ipu kirihou 15l, me te kounga pai me te kounga pai.
He pai mo nga tono penei i a Shampoo, horoi horoi horoi, me nga whakapaipai whakapaipai, ka tukuna e tenei miihini te tere tere i te wa e pupuri ana i te kounga o runga. Ko tana pukenga me te pai o te hoahoa ka awhina i te whakaheke i te aukati me te whakapiki ake i te whakaputanga, te whakarite i te otinga utu e whakanui ana i to hokinga mai ki te haumi.

Specifications

serial number	Material PE、PP、PVC、PA...	High speed movement mode(curved arm)
serial number	Material PE、PP、PVC、PA...	Machine model:KGH15D
Specifications
1	Max container capacity	15 L
2	Output(dry Cycle)	500 PC/HR x2 PC/HR
3	Machine Dimension(L×W×H)	5.6 M x 3.9 M × 3.5 M
4	Machine weight	18.5T
Clamping Unit
1	Clamping force	200 KN
2	Mold platen size(W×H)	580 MM x500 MM
3	Platen openingstroke	320 MM -800 MM
4	Platen moving stroke	720 MM
5	Max mold size(W×H)	700 MM -500 MM
6	Mold thickness	350 MM -450 MM
Power
1	Servooil pump motor power	22 KW
2	Servo pump displacement	200 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	1.5 M³/MIN
5	Cooling water pressure	0.2 Mpa - 0.3 Mpa
6	Water consumption	140 L/min
7	Average energy consumption	40 KW -50 KW
Extruder unit
1	Screw diameter	90 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	180 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	16 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	55 KW
Die head
1	Number of heating sections	3 * 8 ZONE
2	Heating power	6.5 KW
3	Maxdie-pin diameter	220 MM
4	Accumulator capacity	240 MM -280 MM
5	(PE)Accumulator weight	170 MM
