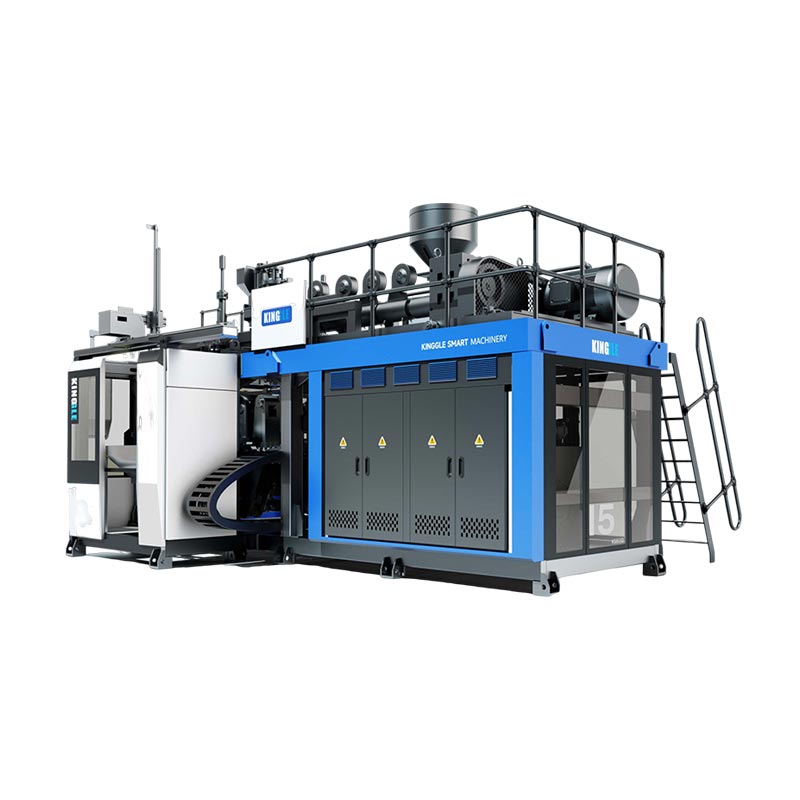

15l Kotahi Station Puhia te miihini miihini

Model:KGB15L

I hangaia mo te whakatipu-nui, ko tenei-Station tonu te pupuhi i te miihini hangai ki te whakaputa ipu ki te 15l. Ko tana hoahoa ngawari e taea ai te huri i waenga i nga whirihoranga kotahi me te maha-mate, kia whakarite i te kaha o te tino pai mo nga tini ipu. Ka taea e koe te hoko 15l Stan Station Buden te pupuhi miihini i te miihini.

Rorohiko: 15LTaumaha: 7.5t

Tuku Uiui

Whakaahuatanga Hua Specification Application

Mai i nga pounamu shampoo ki te pupuhi o te ipu miihini a Jerrycan, tenei teihana 15L kotahi te pupuhi miihini e whakaputa ana i te kounga o te kounga me te mahi i te kounga pai. Whakaarahia to kaha whakaputa me tenei miihini kaha me te miihini.

Nga waahanga me nga painga

Ko te miihini miihini e whakamahi ana i te huarahi whangai i hangaia mo te 15L kaha, te whakamahi tika i te matotoru o te toto, me te whakarite i te kaha o te hua, me te whakaputa i nga taonga nui o te 15L.
Te whakawhirinaki ki nga punaha whakahaere hiko hiko, me te mea ka hangaia e te Putanga o te Hangarau, he maamaa me te mana whakahaere, me nga mahi whakatikatika a-ringa. Ka taea e nga kaiwhakarato te mahi i te whakamaoritanga tika kia rite ki nga tikanga mahi tonu, ma te whakarite kia tino whai kiko te whakaputa i nga matea rereke o te maakete. Ka taea e ia te whakaputa i nga ipu 15L me nga hanganga rereke penei i te paparanga-rua me te rua-a-rua, me te whakamahi i nga hua mo nga taonga matū, te kai me te inu.

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB15L
Specification
1	Max container capacity	15L
2	Output(dry Cycle)	450 PC/HR
3	Machine Dimension(L×W×H)	4.5M x2.2 M x2.8 M
4	Machine weight	7.5 T
Clamping Unit
1	Clamping force	165 KN
2	Mold platen size(W×H)	500 MM x 550 MM
3	Platen openingstroke	280 MM - 680 MM
4	Platen moving stroke	600 MM
5	Max mold size(W×H)	580 MM×500 MM
6	Mold thickness	300 MM - 380 MM
Power
1	Servooil pump motor power	18.5KW
2	Servo pump displacement	130 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.8 M²/MIN
5	Cooling water pressure	0.2-0.3 Mpa
6	Water consumption	70 L/min
7	Average energy consumption	25 KW-34 KW
Extruder unit
1	Screw diameter	75 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	100 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	16 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	30 KW
Die head
1	Number of heating sections	3*8 ZONE
2	Heating power	6.5 KW
3	Maxdie-pin diameter	220 MM
4	2Center distance of double die head	240-280MM
5	2MTMax die-pindiameter	150MM
