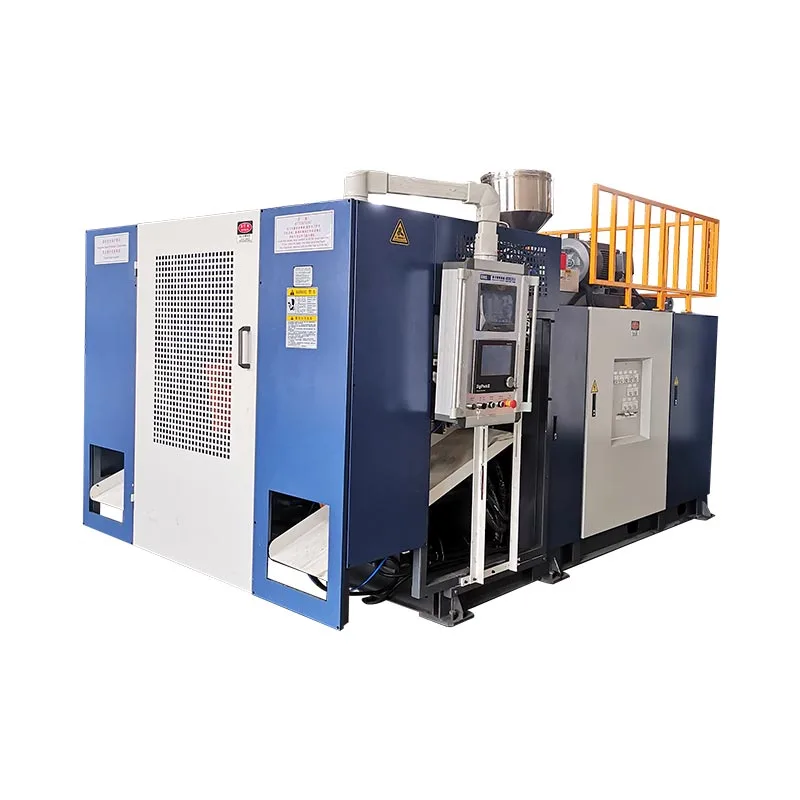

5l Stan Station pupuhi te miihini miihini

Model:KGB5D

Whakanuihia to whakaputanga me o maatau pukenga 5L Senster Rouhia te pupuhi miihini hangai. Ko tenei miihini mahi nui e tuku ana i nga hononga ngawari, tae atu ki te 2, 3, e 4 ranei te whakarite upoko-mate maha, hei whakauru i te maha o nga rahi o te ipu.

Rorohiko: 5LTaumaha: 5.2T

Tuku Uiui

Whakaahuatanga Hua Specification Application

Mai i nga pounamu iti-nui ki nga ipu 5L nui, ko tenei teihana e rua e pupuhi ana i te miihini miihini te whakaputa pai me te kounga rite tonu. He pai mo nga momo tono, tae atu ki te horoi horoi horoi horoi horoi pupuhi nga rongoā miihini, ko ia Ka tukuna e ia te putanga noa me te whakanui i to hokinga mai ki te haumi.

Nga waahanga me nga painga

● Te whakawhiti i te riipene whakawhiti-rua, ma te whakamahi i te waharoa o te buffer mo te neke, te pai me te pumau
● Te upoko mate e whakamahi ana i te puka kai kai
● Ko te punaha whakahaere hiko e tango ana i te mana whakahaere o te miihini, me nga umanga a-ringa motuhake hei whakariterite i te whakatikatika me te whakatikatika.
● Ko te rōrahi hua nui ko te 5L, ko ia te mea e hangaia ana e nga taputapu hangai tino pai mo te hanga papatipu iti iho i te 2-5L.
● E ai ki nga ahuatanga, ka taea te wehe ki te apa kotahi, te paparanga takirua, e toru apa, raina marama, me etahi atu.
● Ko te punaha Hydraulic e whakamahi ana i te hoahoa rereke, te tino pai me te tere tere

Specifications

Serial number	Material PE、PP、PVC、PA...	Mold-moving series
Serial number	Material PE、PP、PVC、PA...	Machine model:KGB5D
Specifications
1	Max container capacity	5L
2	Output(dry Cycle)	500 PC/HR x2 PC/HR
3	Machine Dimension(L×W×H)	3.2 M×2.2 M×2.5 M
4	Machine weight	5.2 T
Clamping Unit
1	Clamping force	65 KN
2	Mold platen size(W×H)	368 MMx450 MM
3	Platen openingstroke	188 MM-538 MM
4	Platen moving stroke	420 MM
5	Max mold size(W×H)	410 MM×450 MM
6	Mold thickness	200 MM-310 MM
Power
1	Servooil pump motor power	15 KW
2	Servo pump displacement	100 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.7 M³/MIN
5	Cooling water pressure	0.2 Mpa-0.3 Mpa
6	Water consumption	80 L/min
7	Average energy consumption	16 KW-25 KW
Extruder unit
1	Screw diameter	70 MM
2	Screw L/D ratio	25 L/D
3	HDPEMelting capacit for HDPE	80 Kg/hr
4	Number of heating zone	3 ZONE
5	Screw heating power	12.6 KW
6	Screw fanpower	0.25 KW
7	Extruder motor power	22 KW
Die head
1	Number of heating sections	3*8 ZONE
2	Heating power	3.7 KW
3	1MT Max die-pin diameter	150 MM
4	2 Center distance of double die head	150 MM-180 MM
5	2MT Max die-pindiameter	80 MM
