60L te whakaemi pupuhi miihini hangai

Model:KGB90A

Ko tenei miihini whakatuwhera me te kati i te miihini hangai, e whakaatu ana i te tohenga a te raima miihini me te miihini hinu e aukati ana i te hangai, ka kaha te mahi me te kaha. Ko te punaha Serdraic Serdraic mo te penapena whakautu tere me te kaha o te miihini, e pupuhi ana i te miihini hangai i te maha o nga hua, mai i nga ipu iti ake.

Riki: 60lTaumaha: 14t

Tuku Uiui

Whakaahuatanga Hua Specification Application

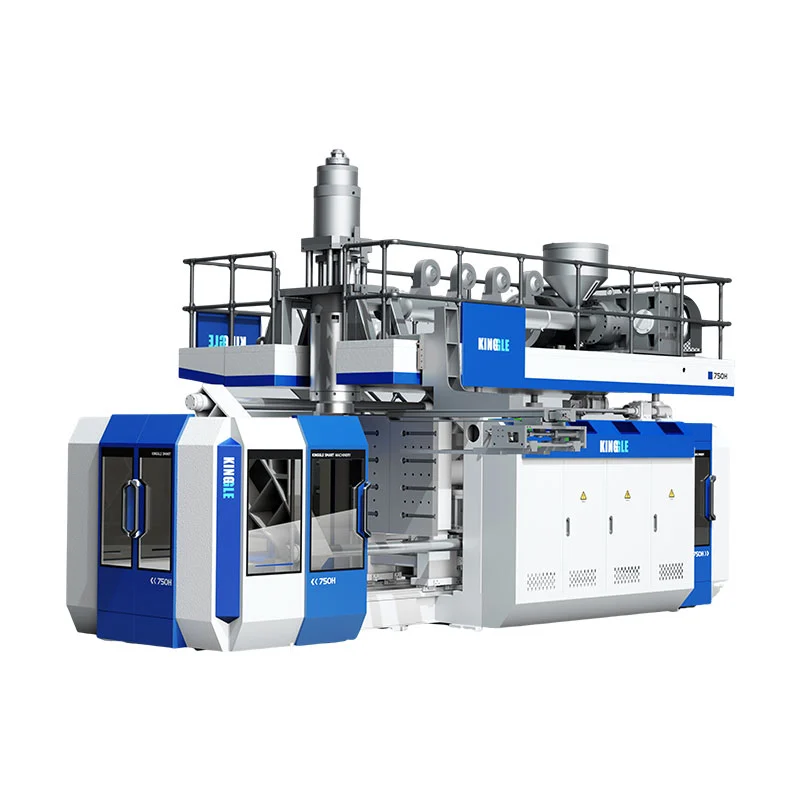

Ko te tauira KGB90A te tauira, he kaiwhakaari nui te pupuhi miihini whakarewa, ko te miihini matotoru 100, te ringa robot, me te whakaputa huatanga me te kounga hua me te kounga hua. Ko tenei miihini 60L e pupuhi ana i te miihini hangai mo nga momo tono, tae atu ki nga pupuhi miihini kirihou, me nga taapiri wai, nga pouaka motuka, me nga aukati motuka, me nga aukati waka.

Nga waahanga me nga painga

Ko tenei tauira ko te whakatuwhera i nga momo taapiri me te kati i nga momo kati kati kati, me te raima hiko o te hinu
● Rauemi rokiroki rokiroki
● Te Rahi Rawa 60L
● E tika ana mo te matū whakakii matū, nga taonga taakaro nui, abs motuka waka, etc.
● Ma te whakamahi i te hangarau ahurei, te punaha pepeke panui momu, te kaha whakapiri nui, tere tere tere tere, huringa hua poto

60L accumulate blow molding machine

Specifications

Serial number	Material PE、PP、ABS...	Fixed open- closing type Mold closing oil cylinder(single cylinder)
Serial number	Material PE、PP、ABS...	Machine model:KGB90A
Specifications
1	Max container capacity	60 L
2	Output(dry Cycle)	500 PC/HR

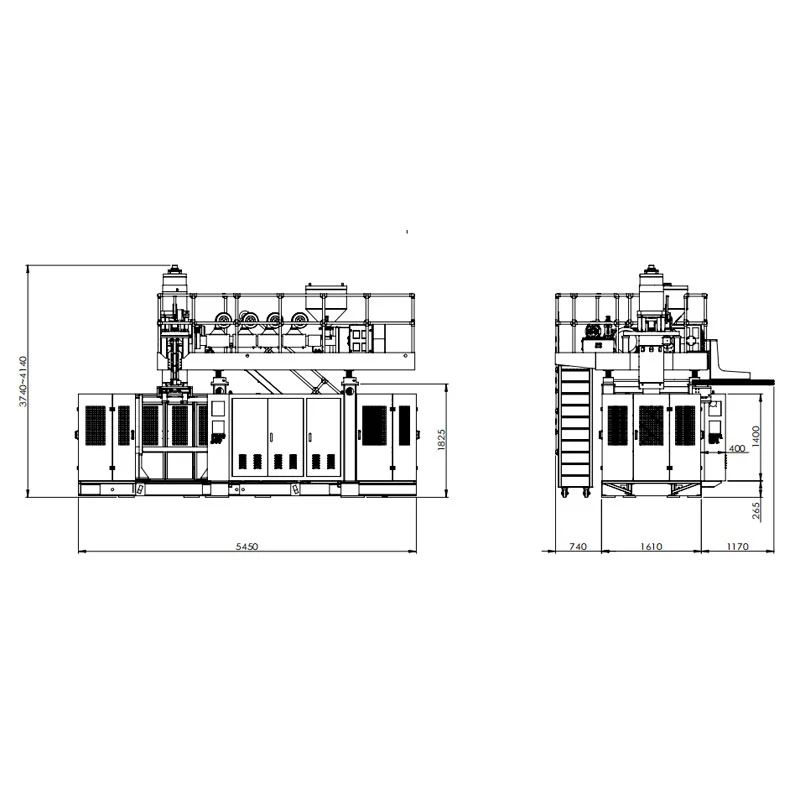

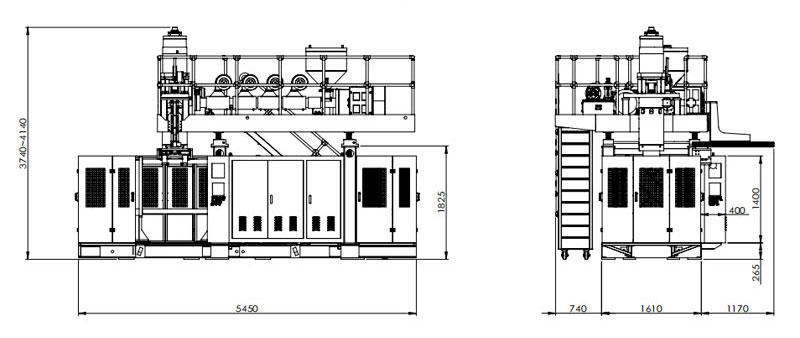

3	Machine Dimension(L×W×H)	5.45 M x 3.5 M x 4.2 M
4	Machine weight	14 T
Clamping Unit
1	Clamping force	280 KN
2	Mold platen size(W×H)	960 MM x 980 MM
3	Platen opening stroke	450 MM-1050 MM
4	Platen moving stroke	500 MM
5	Max mold size(W×H)	700 MM x 980 MM
6	Mold thickness	460 MM-550 MM
Power
1	Servo oil pump motor power	18.5 KW
2	Servopump displacement	150 L/MIN
3	Blow pressure	0.8 Mpa
4	Air consumption	1 M³/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	90 L/min
7	Average energy consumption	35 KW-45 KW
Extruder unit
1	Screw diameter	90 MM
2	Screw L/D ratio	24 L/D
3	Melting capacit for HDPE	130 Kg/hr-160 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	17.6 KW
6	Screw fan power	0.5 KW
7	Extruder motor power	45 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	26.8 KW
3	Max die-pin diameter	320 MM
4	Accumulator capacity	6.6 L
5	(PE)Accumulator weight	4.95 KG
