5L Kotahi Kotahi te pupuhi miihini miihini

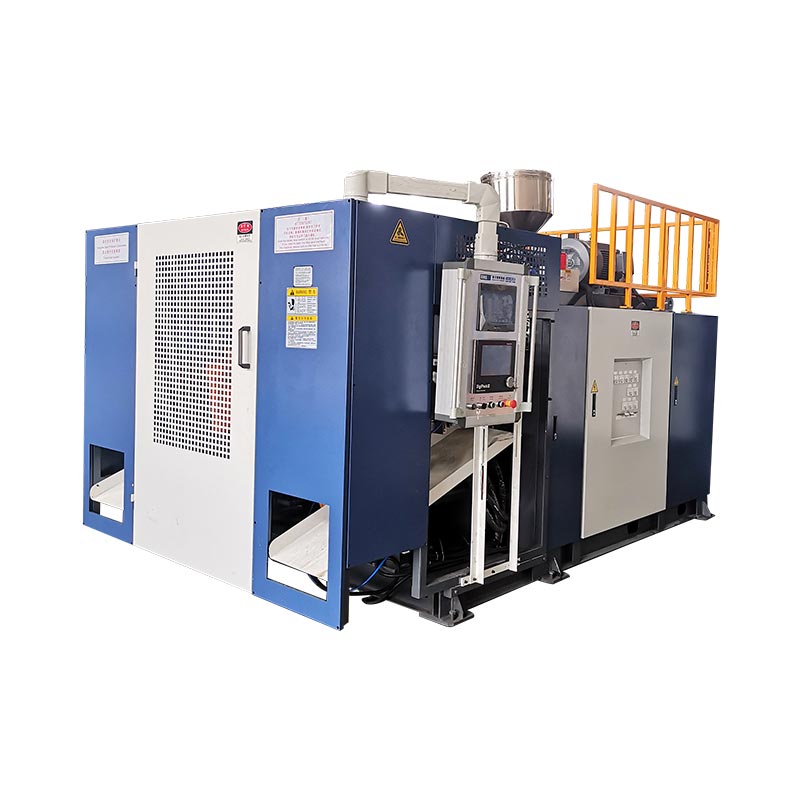

Model:KGB5L

Ka wheako i te ngawari me te kaha o ta tatou-teihana-a-ringa e pupuhi tonu ana. I hoahoatia mo te 5L ipu, ko tenei ohanga 5L kotahi te horoi i te miihini hangai, tae atu ki te 2 nga waahanga miihini miihini whakarewa, ki te whakatutuki i o hiahia whakaputa.

Rorohiko: 5LTaumaha: 3.0t

Tuku Uiui

Whakaahuatanga Hua Specification Application

Ahakoa e hiahia ana koe ki te whakatapu 5L kotahi te pupuhi i te whakarite miihini miihini, me whakarereke ranei ki te whakarereke i nga tono o te maakete, e whakarato ana tenei miihini i nga pukenga me te whai hua. Whakapaa mai ki a maatau i tenei ra ki te tirotiro i ta maatau utu whakataetae me te kitea me pehea te hiki ake o tenei miihini ki o kaha whakaputa.

Nga waahanga me nga painga

● Kotahi te teihana whakawhiti i te teihana whakarewa, i runga i te tohu whiu whiu tika kia pai ai te whakahaere ngawari me te pai o te mahi whakarewa.
● Ko te upoko mate e hangaia ana me te punaha kai whangai, ko te tohatoha rauemi mo te kounga hua whakarei ake.
● Ko te punaha whakahaere hiko hiko e whakahaeretia ana e Mitsubishi PLC, ka haere mai me nga paatene a-ringa motuhake, ka taea e nga kaiwhakarato te whakatika tere me te whakatika tika.
● Ki te kaha o te hua nui o te 5L, ko te mea ko te kowhiringa o runga mo te whakaputa iti-rōrahi o nga ipu mai i te 2l ki te 5L.
● Mo nga ahuatanga o nga ahuatanga o te hua, e tuku ana i nga whiringa whaitake tae atu ki te papanga kotahi-a-papa, papa-rua, paparanga-rua-apa, me nga momo maamaa ki te whakatutuki i nga tono kanorau.
● Ko te punaha Hydraulic e whakaatu ana i tetahi hoahoa rereke, te whakaputa i te tino kaha me te tere tere o te whakautu urupare, ka kaha te whakanui i te kaha o te whakaputa.

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB5L
Specification
1	Max container capacity	5L
2	Output(dry Cycle)	500 PC/HR
3	Machine Dimension(L×W×H)	3.1M x2.2 M x2.5 M
4	Machine weight	3.0 T
Clamping Unit
1	Clamping force	65 KN
2	Mold platen size(W×H)	368 MM x 450 MM
3	Platen openingstroke	188 MM -538 MM
4	Platen moving stroke	420 MM
5	Max mold size(W×H)	410 MM×450 MM
6	Mold thickness	200 MM - 310 MM
Power
1	Servooil pump motor power	15KW
2	Servo pump displacement	100 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.6 M²/MIN
5	Cooling water pressure	0.2-0.3 Mpa
6	Water consumption	60 L/min
7	Average energy consumption	16 KW-25 KW
Extruder unit
1	Screw diameter	60 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	55 Kg/hr
4	Number of heating zone	3 ZONE
5	Screw heating power	12.6 KW
6	Screw fanpower	0.25 KW
7	Extruder motor power	15 KW
Die head
1	Number of heating sections	3*8 ZONE
2	Heating power	3.7 KW
3	Maxdie-pin diameter	150 MM
4	2Center distance of double die head	150-180MM
5	2MTMax die-pindiameter	80MM
