2l Kotahi Stance pupuhi te miihini miihini

Model:KGB2L

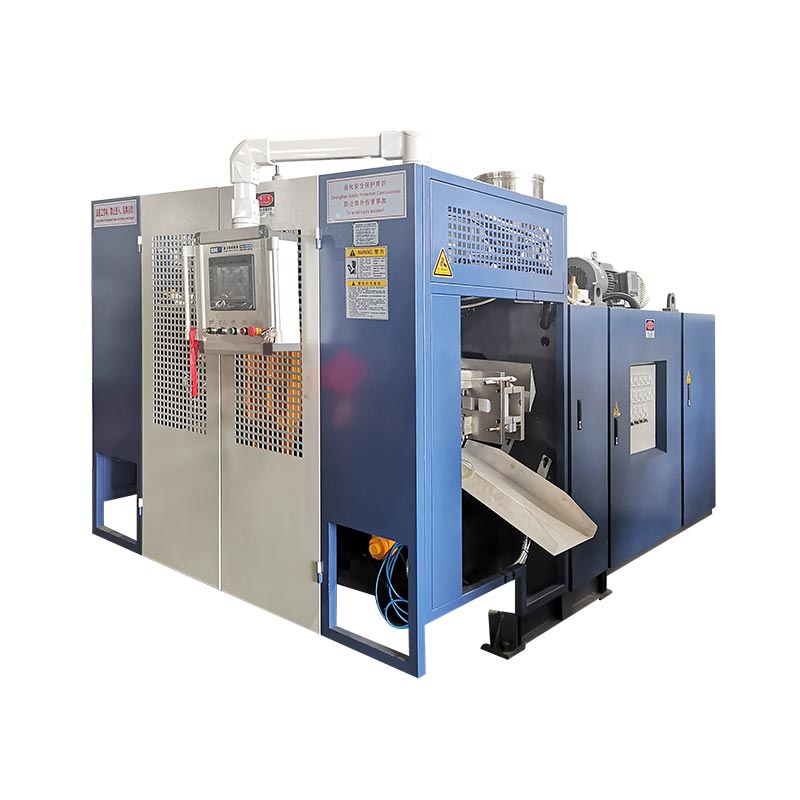

Ko tenei teihana 2L e pupuhi ana i te miihini hangai, e tika ana mo te whakangao ipu 2L, he tino pukenga. Ka tukuna e ia te whiringa ki te huri ki te 2, 3, e 4 ranei te whirihoranga upoko-mate-mate, ka taea e ia te whakanoho mo te whakaputanga pounamu iti 100ml-1 ma te whakamahi i nga miihini hangai iti.

Rorohiko: 2LTaumaha: 2.5t

Tuku Uiui

Whakaahuatanga Hua Specification Application

Ko tenei ngawari ka kaha ake te whakaputa i nga putanga o ia ra, ko te whakatau tika mo nga kaihanga e rapu ana i te nui o te kounga hua. Whakamahia tenei teihana kotahi 2L e pupuhi ana i te miihini hangai hei whakaputa i nga kohinga pounamu mo Shampoo, horoi horoi, nga mea whakapaipai, horoi horoi, wai horoi. Mo nga pukapuka nui ake, whakaarohia to maatau 5L, 15l ranei te pupuhi o te miihini hangai me te maha o nga whiringa upoko mate mate.

Nga waahanga me nga painga

Kotahi Teihana Whakawhitiwhiti Whakawhitiwhiti Whakawhitiwhiti, kua oti i a ia te tohu whiu whiu tika hei whakarite i nga mahi hurihuri maeneene me te pai.
● Ko te upoko mate e hangaia ana me te punaha kai whangai, ko te tohatoha rauemi mo te kounga hua whakarei ake.
● Ko te punaha whakahaere hiko hiko e whakahaeretia ana e Mitsubishi PLC, ka haere mai me nga paatene a-ringa motuhake, ka taea e nga kaiwhakarato te whakatika tere me te whakatika tika.
● Ki te kaha o te hua hua o te 2L, ka tu ko te mea nui mo te whakaputa-iti mo te whakaputa i nga ipu mai i te 50ml ki te 2L.
● Mo nga ahuatanga o nga ahuatanga o te hua, e tuku ana i nga whiringa whaitake tae atu ki te papanga kotahi-a-papa, papa-rua, paparanga-rua-apa, me nga momo maamaa ki te whakatutuki i nga tono kanorau.
● Ko te punaha Hydraulic e whakaatu ana i tetahi hoahoa rereke, te whakaputa i te tino kaha me te tere tere o te whakautu urupare, ka kaha te whakanui i te kaha o te whakaputa.

Specifications

serial number	Material PE、PP、PVC、PA...	Mold-moving series
serial number	Material PE、PP、PVC、PA...	Machine model:KGB2L
Specifications
1	Max container capacity	2L
2	Output(dry Cycle)	600 PC/HR
3	Machine Dimension(L×W×H)	3.1 M x 1.7 M x 2.5 M
4	Machine weight	2.5T
Clamping Unit
1	Clamping force	40KN
2	Mold platen size(W×H)	380 MM x430 MM
3	Platen openingstroke	145 MM - 368 MM
4	Platen moving stroke	370 MM
5	Max mold size(W×H)	360 MM x 380MM
6	Mold thickness	160 MM - 300MM
Power
1	Servooil pump motor power	11 KW
2	Servo pump displacement	80 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.6 M³/MIN
5	Cooling water pressure	0.2 Mpa - 0.3 Mpa
6	Water consumption	50 L/min
7	Average energy consumption	12-18 KW
Extruder unit
1	Screw diameter	50 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	30 Kg/hr
4	Number of heating zone	3 ZONE
5	Screw heating power	7.5 KW
6	Screw fanpower	0.25 KW
7	Extruder motor power	11KW
Die head
1	Number of heating sections	3 * 5 ZONE
2	Heating power	3.2 KW
3	1MTMaxdie-pin diameter	90 MM
4	2Center distance of double die head	130 MM
5	2MTMax die-pindiameter	60 MM
