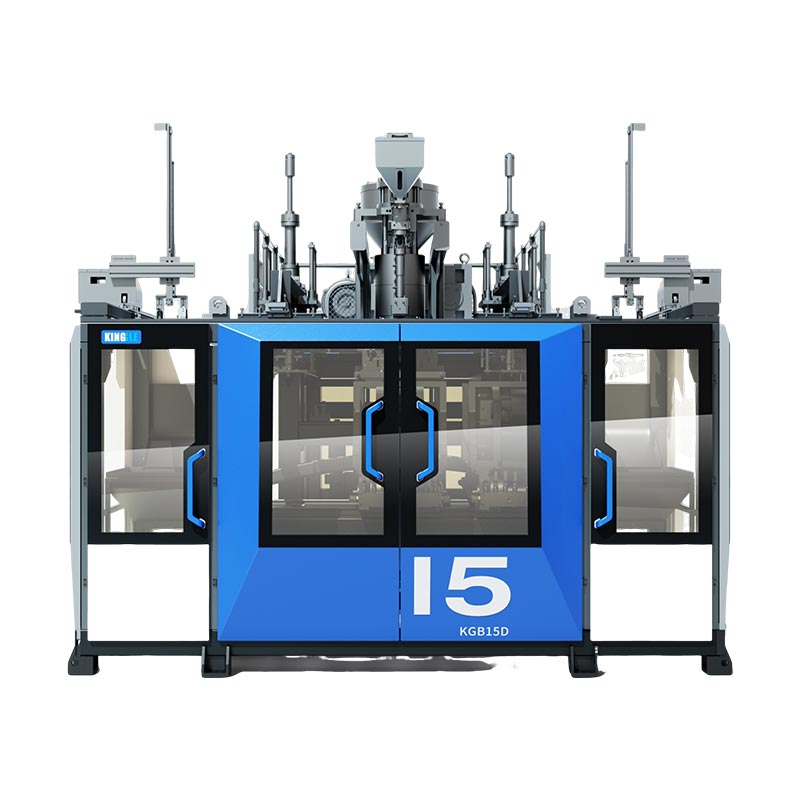

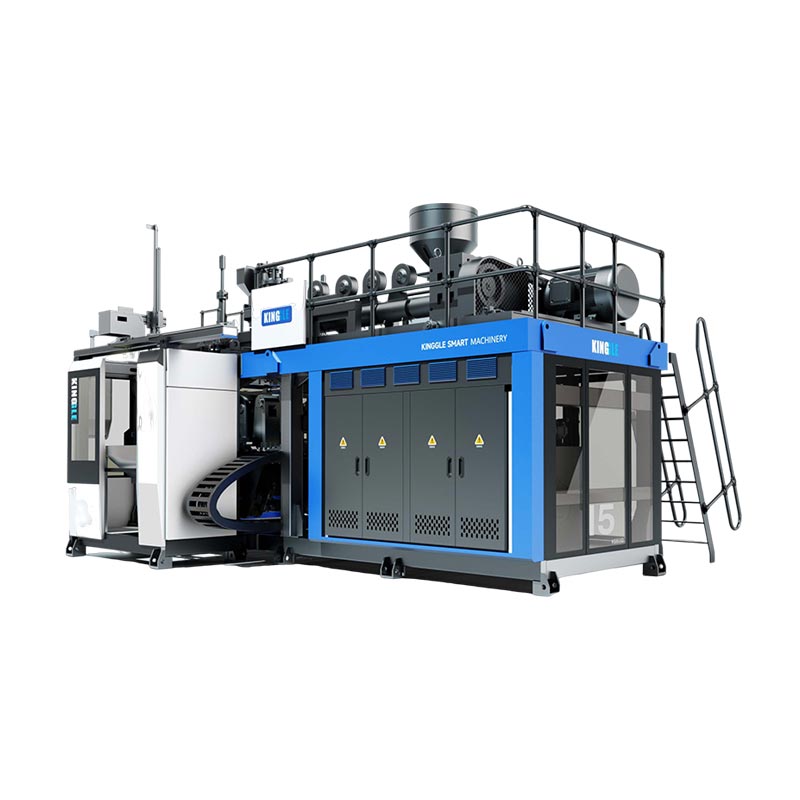

15l Stan Station pupuhi te miihini miihini

Model:KGB15D

Whakanuihia to whakaputanga me ta maatau miihini-waahi-rua-papaa e pupuhi ana i te miihini hangai, i hangaia mo nga ipu tae atu ki te 15l. Ko tenei mahinga nui 15L e pupuhi ana i te miihini hangai, tae atu ki te 2, 3, e 4 ranei te whakarite upoko-mate, hei whakauru i te rahi o nga rahi ipu.

Rorohiko: 15lTaumaha: 12.5t

Tuku Uiui

Whakaahuatanga Hua Specification Application

Mai i nga pounamu iti-nui ki nga ipu kirihou 15l, tae atu ki te pupuhi kirihou kirihou, ko tenei teihana miihini 15l e pupuhi ana i te miihini miihini me te kounga rite tonu. He pai mo nga momo tono, tae atu ki te pupuhi matū matū, penei i te horoi, me nga mea whakapaipai, me te whakaputa i te putanga noa me te whakanui i to hokinga mai ki te haumi.

Nga waahanga me nga painga

Whakahaerenga Tuarua, Tāpirihia te Whakaterenga Whakaputanga, i tino paahitia e te huringa whakaputa o te 30L nga waahanga whakaputa i whakaritea ki te teihana kotahi, me te whakatutuki i nga hiahia o te nui-rahi.
Whakapaihia ki te taputapu hurihuri teitei-oti, te raima haehae mo te mana hanga, whakarereke tere, te wa whakaheke poto, te iti o te huringa, te whakarite i te hua ngoikore.
Mitsubishi PLC mana whakahaere, kaupapa-mua mo te whakatikatika tika o te pupuhi, te paatene a-ringa mo nga kaiwhakarato kia hiahiatia, me te taunekeneke-a-miihini.
Ka taea e taatau te whakaputa 15L ipu me te papa-rua, papa-rua, papa-rua, me nga raina e toru e hiahiatia ana, e tika ana mo te matū, kai, me te rongoā.

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB15D
Specification
1	Max container capacity	15L
2	Output(dry Cycle)	450x2 PC/HR
3	Machine Dimension(L×W×H)	4.8M x2.9 M x2.8 M
4	Machine weight	12.5 T
Clamping Unit
1	Clamping force	165 KN
2	Mold platen size(W×H)	500 MM x 550 MM
3	Platen openingstroke	280 MM - 680 MM
4	Platen moving stroke	600 MM
5	Max mold size(W×H)	580 MM×550 MM
6	Mold thickness	300 MM - 380 MM
Power
1	Servooil pump motor power	18.5KW
2	Servo pump displacement	130 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	1.1 M²/MIN
5	Cooling water pressure	0.2-0.3 Mpa
6	Water consumption	110 L/min
7	Average energy consumption	25 KW-34 KW
Extruder unit
1	Screw diameter	90 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	120 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	16 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	45 KW
Die head
1	Number of heating sections	3*8 ZONE
2	Heating power	6.5 KW
3	Maxdie-pin diameter	220 MM
4	2Center distance of double die head	240-280MM
5	2MTMax die-pindiameter	150MM
