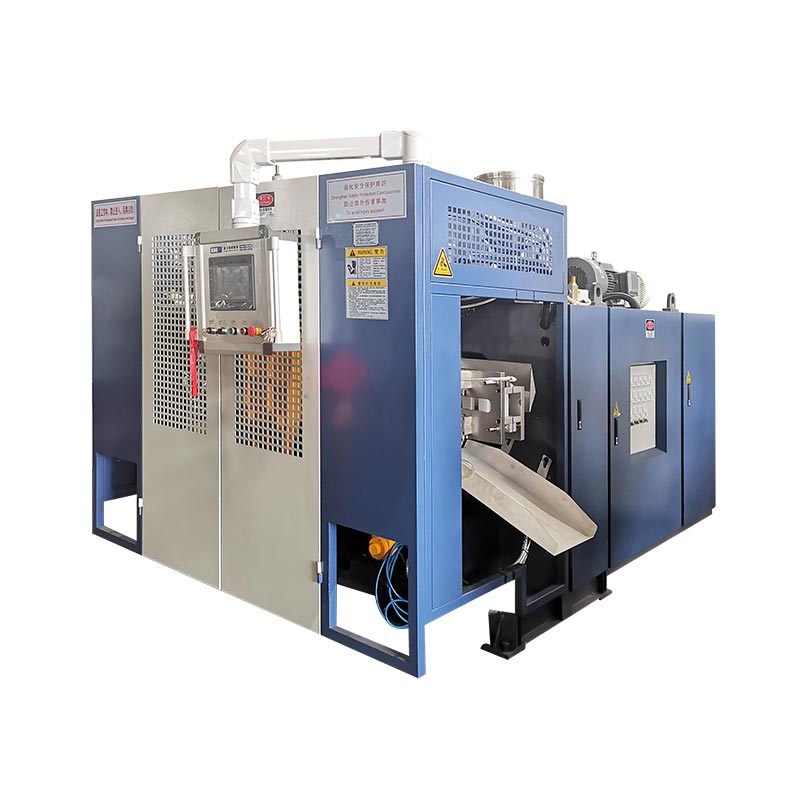

2L Coast Station Blow Blongrating Miihini Miihini

Model:KGB2D

Whakanuihia to whakaputanga me to maatau kounga teitei 2L Conshing Consulting Buden Buducting Miihini Miihini. I hangaia mo nga ipu 2L nui rawa atu, ko tenei punaha whaihua e waatea ana ki te whakaputa i te whānuitanga o nga hua.

Rorohiko: 2LTaumaha: 4.5t

Tuku Uiui

Whakaahuatanga Hua Specification Application

Me huri noa ki te 2, 3, e 4 ranei te whirihoranga upoko-mate maha ki te whakatutuki i nga pukapuka iti, kia pai ai mo nga tono rereke. Mai i nga pounamu shampoo ki te pupuhi kokoru miraka e hiahia ana ki te miihini miihini, tenei 2L e pupuhi ana i te miihini whanui 2 ka pupuhi te miihini hangai i te kounga o te kounga me te putanga motuhake. Tirohia a maatau Puhi Puhi kirihou Whakataetae i te utu miihini miihini me te iriti i te kaha mo te nui o te painga.

Nga waahanga me nga painga

Ko te punaha whakahaere hiko hiko e kiia ana ko te "Smart Smart" o te mahi a Mitsubishi PLC, me nga tukanga aunoa me te kaha ki te whakahaere tika i nga tohutohu uaua. I te wa ano, ko te hoahoa whakaaro mo nga pihi a-ringa motuhake ka taea e ia te tiimata me te ngawari ki nga mahi whakatikatika i nga wa katoa, me te whakatutuki i te mahi miihini-a-tangata.
Ko nga ahuatanga o te roopu me nga puranga e arotahi ana ki te hanga-iti-iti o nga ipu iti me te rahi o te 2L me raro. Ko te hoahoa tinana kua oti te whakarite i roto i te waahi iti, e noho ana i tetahi waahi iti, he ngawari te waahi, me te whakatikatika i nga whakatakotoranga awheawhe hanga. Ahakoa he awheawhe iti, he wheketere nui ranei, ka taea te whakahaere ngawari, te whakarato i nga otinga whakaputa pai mo nga hinonga rereke o nga rahi rereke.

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB2D
Specification
1	Max container capacity	2L
2	Output(dry Cycle)	600 x 2 PC/HR
3	Machine Dimension(L×W×H)	3.1M x2.2 M x2.5 M
4	Machine weight	4.5 T
Clamping Unit
1	Clamping force	40 KN
2	Mold platen size(W×H)	338 MM x 430 MM
3	Platen openingstroke	145 MM - 368 MM
4	Platen moving stroke	370 MM
5	Max mold size(W×H)	360 MM×380 MM
6	Mold thickness	160 MM - 300 MM
Power
1	Servooil pump motor power	11KW
2	Servo pump displacement	80 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.6 M²/MIN
5	Cooling water pressure	0.2-0.3 Mpa
6	Water consumption	60 L/min
7	Average energy consumption	12 KW-18 KW
Extruder unit
1	Screw diameter	60 MM
2	Screw L/D ratio	25 L/D
3	HDPEMelting capacit for HDPE	55 Kg/hr
4	Number of heating zone	3 ZONE
5	Screw heating power	12.6 KW
6	Screw fanpower	0.25 KW
7	Extruder motor power	15 KW
Die head
1	Number of heating sections	3*5 ZONE
2	Heating power	3.2 KW
3	Maxdie-pin diameter	90 MM
4	2Center distance of double die head	130MM
5	2MTMax die-pindiameter	60MM
