Te tepu tepu kirihou e pupuhi ana i te miihini miihini

Model:KGS120Y

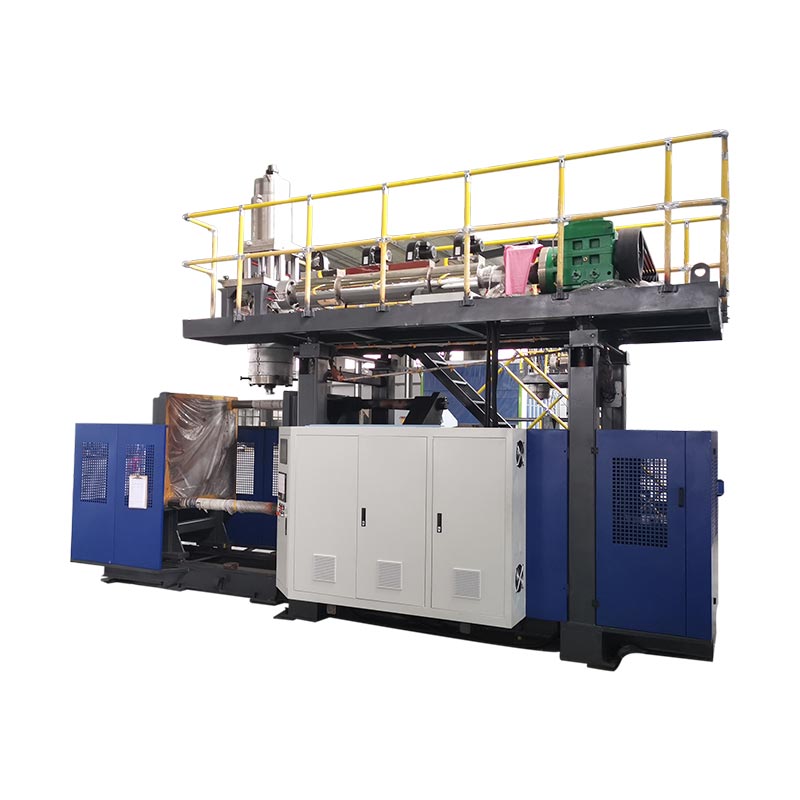

Ko te Kingglen Kgs120y he papa tepu pumau e pupuhi ana i te raima miihini mo te tepu huri noa i te pupuhi miihini tono. Ka tutuki pai te teepu kirihou, i te pupuhi kirihou kirihou ranei nga mahi miihini raima, ka tukuna e ia nga hoahoa tohu me te kounga pai, ka hoatu ki a koe he whakataetae whakataetae.

Rorohiko: 2000lTaumaha: 42t

Tuku Uiui

Whakaahuatanga Hua Specification Application Workshop

Kgs 120y 183 te tepu papahopu kirihou e pupuhi ana i te miihini hangai hei hanga mo te Paetene kirihou Patohia te hua, penei i te tepu / whare ware me etahi atu me te pupuhi pupuhi pupuhi Ka taea e te miihini te whakatutuki i nga whakaritenga whakaputa hua nui o te hua, me te hanga tere-tere hei whakaora i te utu o te waeine.
Kei roto i te moog 100 te kaiwhakahaere matotoru, te ringa robot, me te pupuhi o raro pūnaha, whakarei ake i te hua me te kounga.

Nga waahanga me nga painga

Whakamahia mo nga hua hanga i roto i nga momo ahumahi. Ahakoa he nui nga ipu aukati-kore i roto i te ahumahi matū, te whakakii i nga pounamu me nga pouaka hangai me nga tohu o nga kai mo nga hua matū o ia ra, ka taea te whakahaere kia tutuki nga tono rereke.
Ko te mahinga whangai e whakamahi ana i te hangarau tapahi-taha, ka arotau i runga i nga ahuatanga whakaputa nui-kaha o te miihini hangarua 120y. Ko te tika te whakahaere i te reanga rere me te tohatoha o nga rauemi mata hei whakarite i te matotoru pakitara o te hua o te hua o te hua, me te whakakore i nga ngoikoretanga o te kounga.

Specifications

serial number	Material HDPE…	Mold closing oil cylinder(three cylinders)
serial number	Material HDPE…	Machine model:KGS120Z
Specifications
1	Max container capacity	2000 L
2	Output(dry Cycle)	300 PC/HR
3	Machine Dimension(L×W×H)	8.3 M ×3.4 M × 6.8 M
4	Machine weight	42 T
Clamping Unit
1	Clamping force	1800 KN
2	Mold platen size(W×H)	1600 MM×1900 MM
3	Platen openingstroke	600 MM-1800 MM
4	Platen moving stroke	700 MM
5	Max mold size(W×H)	1650 MM×19000 MM
6	Mold thickness	830MM - 1030 MM
Power
1	Servooil pump motor power	25 KW
2	Servo pump displacement	200 L/MIN
3	Blowpressure	0.8 Mpa
4	Air consumption	2 M²/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	110 KW -130 KW
Extruder unit
1	Screw diameter	120 MM
2	Screw L/D ratio	30 L/D
3	Melting capacit for HDPE	350 Kg/hr
4	Number of heating zone	6 ZONE
5	Screw heating power	32.5 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	132 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.8 KW
3	Maxdie-pin diameter	800(950) MM
4	Accumulator capacity	45(60) L
5	(PE)Accumulator weight	33(45) KG
