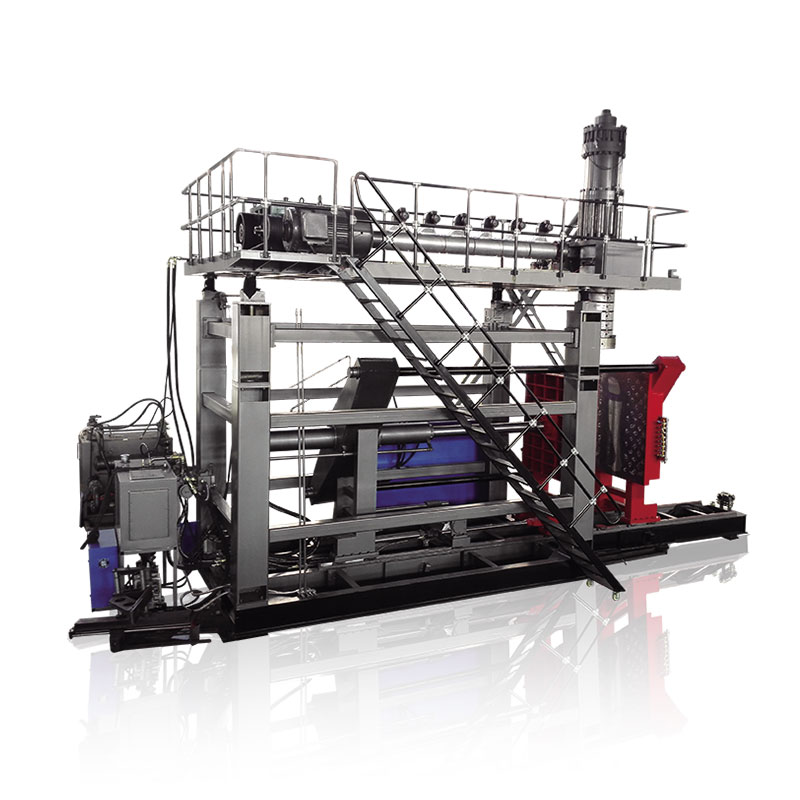

1000L IBC Te Tanks Tanks Whakapaipai i te Miihini Miihini

Model:KGB1000L- IBC

Te wheako i te kaha me te pumau o nga tank kgb1000l i te kohi miihini ki te pupuhi i te miihini hangai, e 55 hereni ki te neke atu i te 55 hereni ki te whakaiti i te wiri me te neke. Ko te piripiri takirua takirua me te piriti e toru-cylinder e whakarite ana i te tohatoha ahotea puta noa i te whakarewa, te whakapai ake i te tika whakaputa.

Rorohiko: 1000LTaumaha: 55t

Tuku Uiui

Whakaahuatanga Hua Specification Application

Ko tenei 1000L IBC te wai ka whakaemihia te miihini hangai ki te whakauru i nga tikanga hangarau mo te pupuhi me te whakaputaranga-maha mo nga utu whakaheke me te pai ake o te roa o te hua. He pai ki te whakaputa i nga ipu kaha, tae atu ki te pupuhi i nga tank miihini hangai, kua hangaia e tenei miihini mo te IBC Darms ki te 1000L, he pai rawa atu. Whakapaa mai ki a maatau i tenei ra mo te kii kua whakaritea me te tirotiro i ta maatau whakataetae miihini waiamaha wai ki te utu miihini.

Nga waahanga me nga painga

Ka taea e te taputapu katoa te toro atu i te 55 taranata, ka whai hua ki te whakapohehe me te nekehanga miihini, me te whakapai ake i te tika o te whakaputa.
● Diagonal Teads Teads rua me te Central E toru-cylinder te whakapiripiri, ka tino kaha te tauira, kaore i te ngawari te korero
● Ko te hanga maha-paparanga ka whakaiti i nga utu whakatipu me te whakapai ake i te roa o te waa
● He pai mo te hangahanga o nga hua kirihou nui penei i nga pourewa wai, nga tankiroki rokiroki, nga ipu matū, me etahi atu.

1000L IBC water tanks accumulate blow molding machine

Specifications

Serial number	Material PE、PP、ABS、HMWHDPE..	Fixed open- closing type Specialized Machine Series
Serial number	Material PE、PP、ABS、HMWHDPE..	Machine model:KGS1000L-IBC
Specifications
1	Max container capacity	1000 L
2	Output(dry Cycle)	150 L

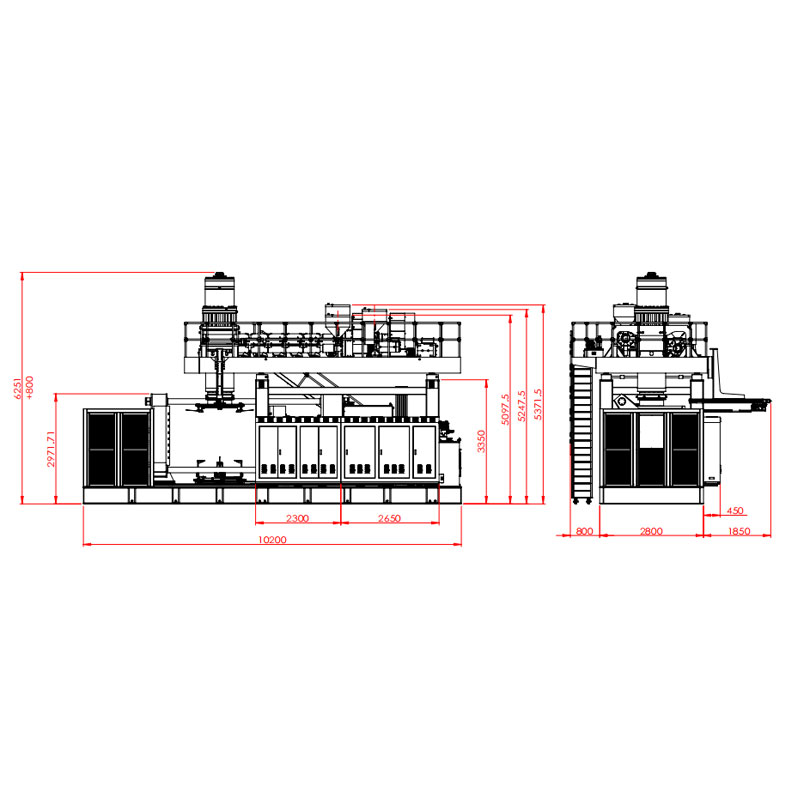

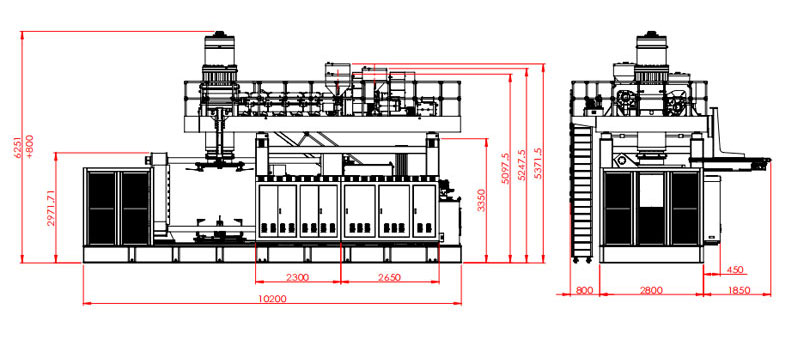

3	Machine Dimension(L×W×H)	9.5 M x 5.1 M x 6.5 M
4	Machine weight	55 T
Clamping Unit
1	Clamping force	1000 KN
2	Mold platen size(W×H)	1800 MM x 1600 MM
3	Platen opening stroke	1150 MM - 2700 MM
4	Platen moving stroke	950 MM
5	Max mold size(W×H)	1600 MM x 1500 MM
6	Mold thickness	1200 MM - 1400 MM
Power
1	Servo oil pump motor power	25 KW
2	Servopump displacement	250 L/MIN
3	Blow pressure	0.8 Mpa
4	Air consumption	2 M³/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	110 KW - 150 KW
Extruder unit
1	Screw diameter	100 MM x 2 MM
2	Screw L/D ratio	32 L/D
3	Melting capacit for HDPE	180 Kg/hr x 2 Kg/hr
4	Number of heating zone	6 ZONE
5	Screw heating power	30.2 KW
6	Screw fan power	0.6 KW
7	Extruder motor power	90 KW x 2 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.8 KW
3	Max die-pin diameter	450 MM
4	Accumulator capacity	45 L
5	(PE)Accumulator weight	33 KG
