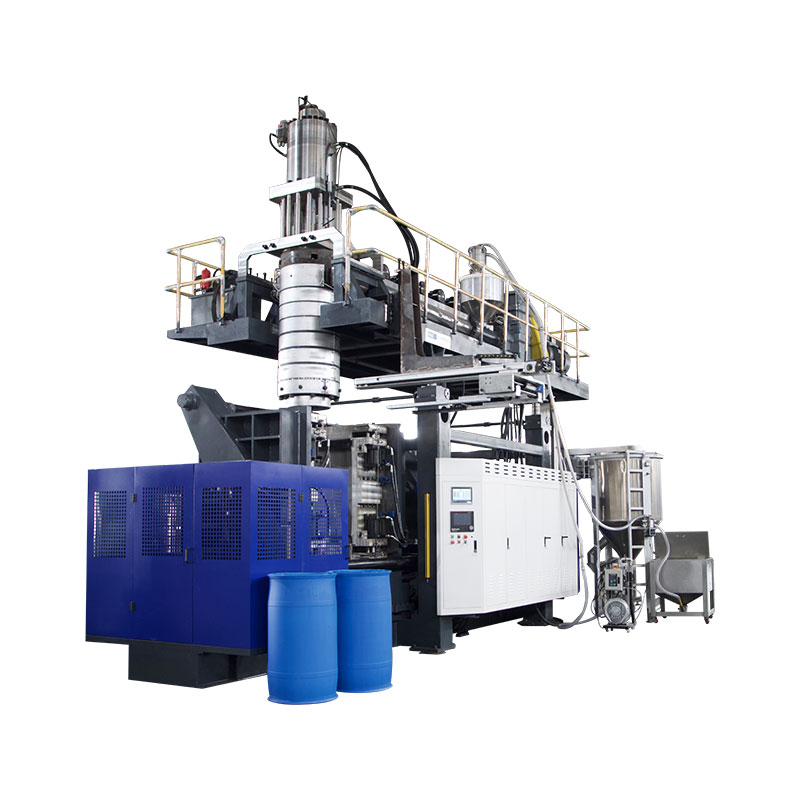

250L te kohi i te miihini barrel motuhake ka pupuhi te miihini hangai

Model:KGB200L/LP

Ko tenei 250L kua whakaemihia te miihini barrel barrel motuhake ka hangaia hei whakaputa i te kounga teitei-teitei-toru-ring o nga paepae matūriki kikorangi. Te whakamahi i tetahi tikanga kati-kati me te ringa e rua te ringa Dedbart shopbar sygince pūnaha taapiri, ka whakarite i te piripiri me te ngoikore o te raima.

Rorohiko: 250lTaumaha: 39t

Tuku Uiui

Whakaahuatanga Hua Specification Application

Ko te paparanga rua-rua, ko te taapiri-rua-rua te upoko ka mate, ka whakakotahi Ma te waahanga nui-mahi e tino mahi ana, e tuku hua ana i nga hua noa. Tēnei Ko te pupuhi o te miihini hangai miihini te whakauru i te matotoru 100 matotoru Kaitono, ringa robot, me te punaha pupuhi o raro hei whakapai ake. Ko nga huringa hua e tutuki ana i nga paerewa kounga nui, tae atu ki te whakawhiti i te 3-mita te whakamatautau whakamātautau me te whiwhi tohu UN.

Nga waahanga me nga painga

Ka mate-rua-a-pokapū paerua kei te mate pukupuku uopoko
● Te whakatutuki i te kaha whakaputa nui ma te hoahoa kua oti te whakarite me te tino hanga, taea te whakaputa i nga waahanga 17-20 / haora
● Ko nga paera i hangaia ka taea te tuku i te whakamatautau 3m maturuturu me te whakaoti i UN whakapūmautanga

Taumaha 200l Taumaha: 12-15 kg

Rauemi: HMWHDPE

Matotoru: 3.5-4 mm

Ko tenei miihini pupuhi punuahu motuhake e hangaia ana mo te hanga tino pai o te kounga-teitei-ring o nga paepae matūriki kikorangi. Te whakamahi i tetahi tikanga kati-kati, he ringa taarua takirua Tāpirihia te punaha whakapiripiri, me te papapa-rua-rua-taapiri kua mate te upoko.

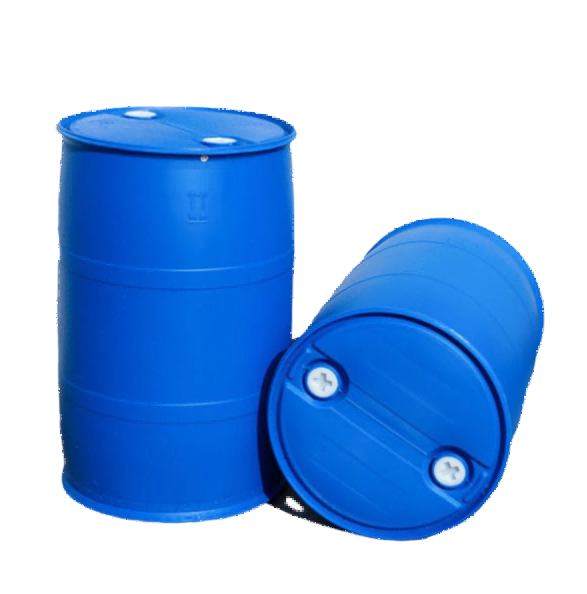

Double layer 220L double-ring chemical barrel blow molding machine

Whakaahua

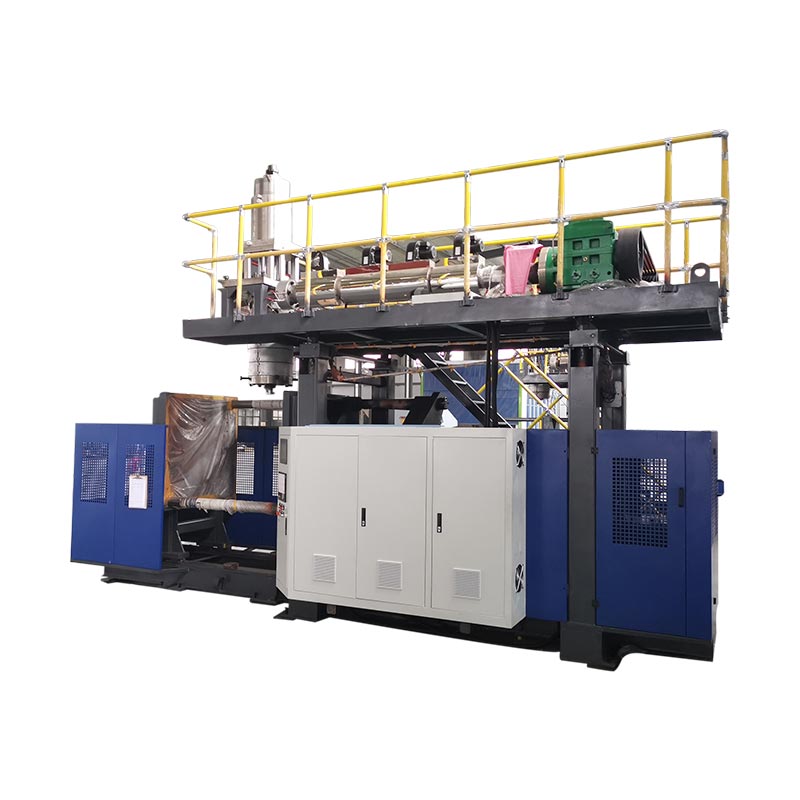

250L accumulate chemical barrel special blow molding machine

Specifications

Serial number	Material PE、PP、ABS、HMWHDPE..	Fixed open- closing type Specialized Machine Series
Serial number	Material PE、PP、ABS、HMWHDPE..	Machine model:KGB200L/LP
Specifications
1	Max container capacity	250 L
2	Output(dry Cycle)	300 PC/HR

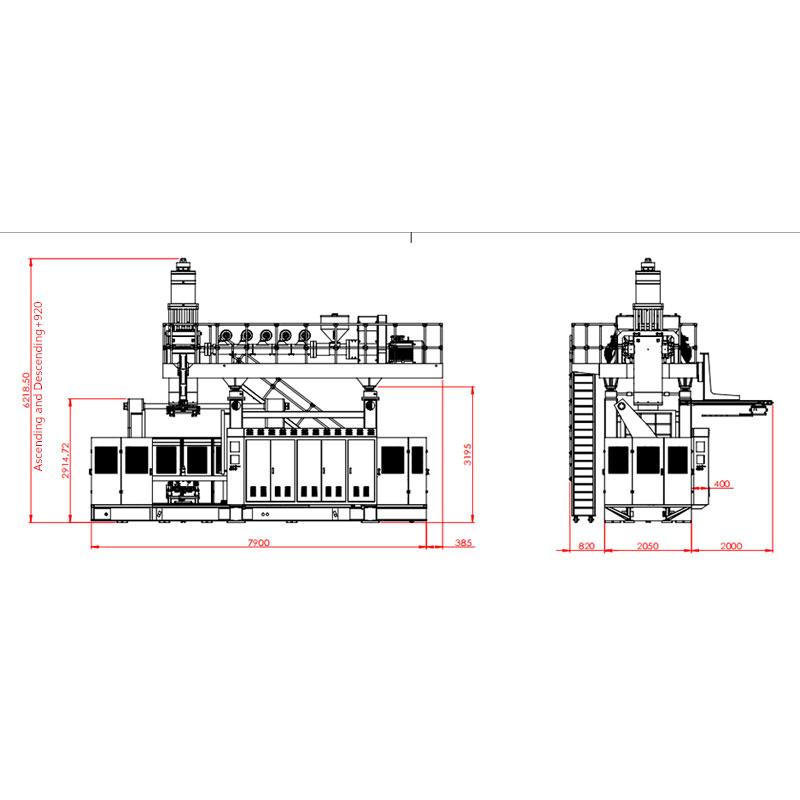

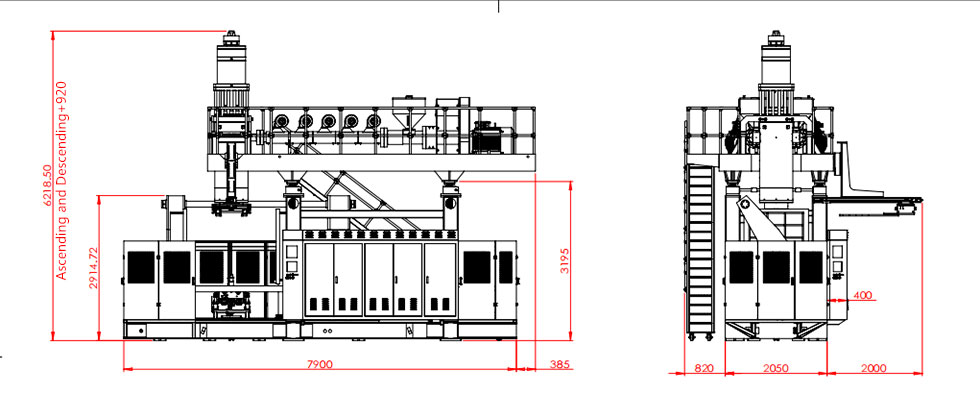

3	Machine Dimension(L×W×H)	9.5 M x 4.1 M x 6.5 M
4	Machine weight	39 T
Clamping Unit
1	Clamping force	760 KN
2	Mold platen size(W×H)	1300 MM x 1500 MM
3	Platen opening stroke	800 MM - 1800 MM
4	Platen moving stroke	950 MM
5	Max mold size(W×H)	1100 MM×1700 MM
6	Mold thickness	810 MM-950 MM
Power
1	Servo oil pump motor power	37 KW + 22 KW
2	Servopump displacement	200 L/MIN + 138 L/MIN
3	Blow pressure	0.8 Mpa
4	Air consumption	1.8 M³/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	70 KW- 80 KW
Extruder unit
1	Screw diameter	100 MMx2 MM
2	Screw L/D ratio	32 L/D
3	Melting capacit for HDPE	180 Kg/hr x 2 Kg/hr
4	Number of heating zone	6 ZONE
5	Screw heating power	30.2 KW
6	Screw fan power	0.6 KW
7	Extruder motor power	90 KW x 2 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.8 KW
3	Max die-pin diameter	450 MM
4	Accumulator capacity	25 L
5	(PE)Accumulator weight	18 KG
