Miihini pupuhi kino abs

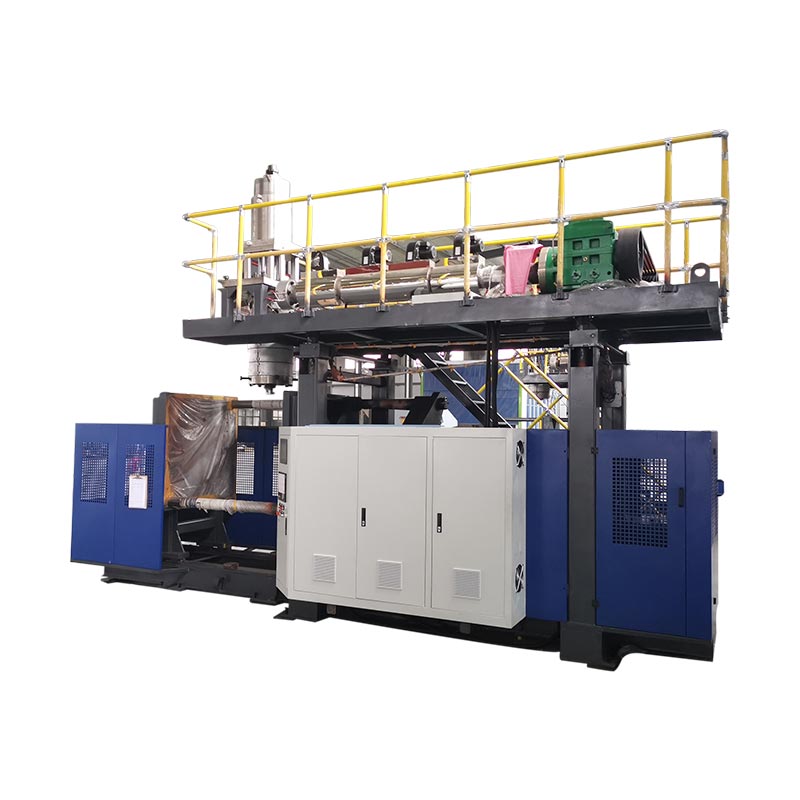

Model:KGB110A-ABS

Hurihia o mahi aunoa me te kgb110a-abs, ko te miihini hanga-abs motuhake e tarai ana i te kairangi mo nga waahanga motuka motuka e pupuhi ana i nga miihini miihini hangai! He tino pai mo te ASB Spalers e pupuhi ana i nga miihini miihini me nga papatohu, ka awhina i a koe ki te arahi i te maakete miihini me te kounga nui.

Rorohiko: /Taumaha: 25t

Tuku Uiui

Whakaahuatanga Hua Specification Application

KGB110A-ABS he tauira motuhake e pupuhi ana i te miihini hangai mo aua waahanga aunoa Kaihanga. Ko te miihini kino o te ABS me te nui o te pehanga teitei me te pupuhi ki te Waihangahia te mata tino ki te penapena i te waa-tukatuka. Me te miihini whakarite Ka poipoia ki nga hua kairangi a te umanga, penapena nga utu haumi miihini.

Nga waahanga me nga painga

Ko te keri hohonu ki te kaha o te hangarau ka taea te whakarite i nga otinga hua-kaha-kaha mo nga kaihoko e whai hua ana; Ka taea hoki te hanga i nga papa-rua-rua ranei nga hanganga whakahiato-paparanga me nga mahi toihanga
Whakamanahia nga mahi matua o te 110A-Abs ki te pupuhi miihini miihini me te punaha mana o te hydraulic pono. Ko te panui o te mana me te pumau tonu e whakarite ana i te whakatuwheratanga me te kaha o te hangai, a tae noa ki te mata o te mahi roa, me te kaha ki te whakaputa i nga ahuatanga o te kounga.

Specifications

serial number	Material PE、PP、ABS、HMWHDPE...	Specialized Machine Series
serial number	Material PE、PP、ABS、HMWHDPE...	Machine model:KGB110A-ABS
Specifications
1	Max container capacity	/
2	Output(dry Cycle)	300 PC/HR
3	Machine Dimension(L×W×H)	6.6 M x 4.2 M x 5.2 M
4	Machine weight	25 T
Clamping Unit
1	Clamping force	1000 KN
2	Mold platen size(W×H)	1100 MM x1600 MM
3	Platen openingstroke	600 MM -1600 MM
4	Platen moving stroke	600 MM
5	Max mold size(W×H)	1000 MM×1400 MM
6	Mold thickness	610 MM -750 MM
Power
1	Servooil pump motor power	30 KW + 22 KW
2	Servo pump displacement	200 L/MIN +138 L/MIN
3	Blowpressure	0.8 Mpa
4	Air consumption	1.8 M²/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	70 KW - 80 KW
Extruder unit
1	Screw diameter	110 MM
2	Screw L/D ratio	28 L/D
3	Melting capacit for HDPE	180 Kg/hr -220 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	24 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	90 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.5 KW
3	Maxdie-pin diameter	450 MM
4	Accumulator capacity	12(20) L
5	(PE)Accumulator weight	9(15) KG
