183 Te riihi o te tepu kirihou

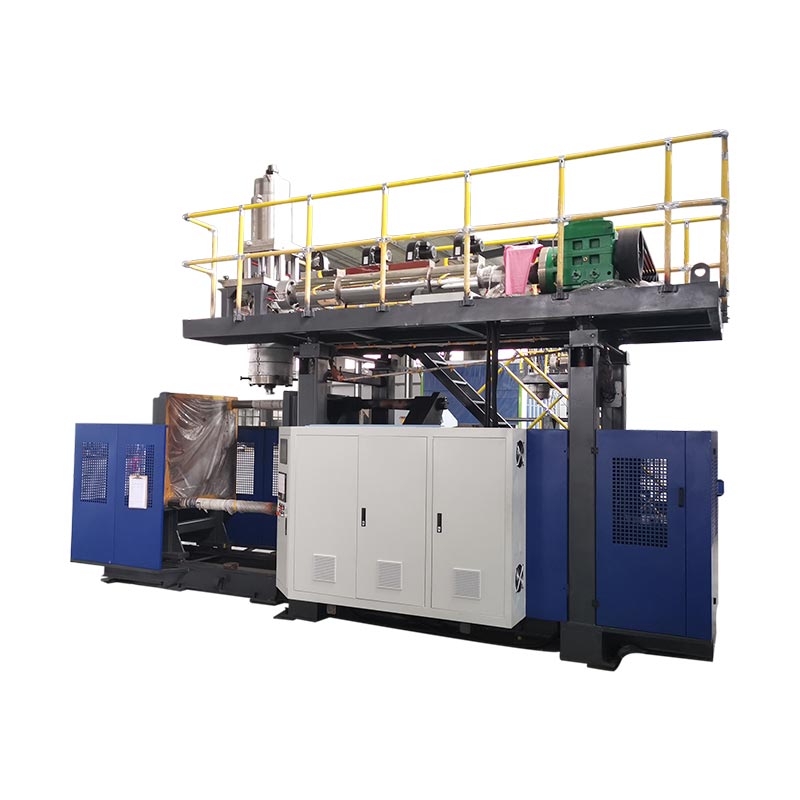

Model:KGS120Z

Ko te Kingglegle Kgs120Z he tapahi kirihou e tapahi ana i te taha-raro-te-te-te-te-rua e hanga miihini ana mo te tepu huri noa i nga mahi miihini miihini. Ka tutuki pai te teepu kirihou, i te pupuhi kirihou kirihou ranei nga mahi miihini raima, ka tukuna e ia nga hoahoa tohu me te kounga pai, ka hoatu ki a koe he whakataetae whakataetae.

Rorohiko: 1000LTaumaha: 38t

Tuku Uiui

Whakaahuatanga Hua Specification Application

KGS120Z 183 Ko te miihini o te teepu kirihou ka hangaia mo te hua momo kirihou, penei Ka rite ki te tepu / Whare Ware me etahi atu me te pupuhi pupuhi pupuhi whakarewa Me tutaki ki nga whakaritenga whakaputa hua nui rawa atu, me te tere-tere Te whakaputanga ki te penapena i te utu o te waeine.
Kei roto i te moog 100 te kaiwhakahaere matotoru, te ringa robot, me te raro Te punaha pupuhi, te whakarei ake i te hua me te kounga.

Nga waahanga me nga painga

Whakamahia mo nga hua hanga i roto i nga momo ahumahi. Ahakoa he nui nga ipu aukati-kore i roto i te ahumahi matū, te whakakii i nga pounamu me nga pouaka hangai me nga tohu o nga kai mo nga hua matū o ia ra, ka taea te whakahaere kia tutuki nga tono rereke.
Ko te mahinga whangai e whakamahi ana i te hangarau tapahi-taparangi ka arotau i runga i nga ahuatanga whakaputa kaha-kaha o te 120z pupuhi ana. Ko te tika te whakahaere i te reanga rere me te tohatoha o nga rauemi mata hei whakarite i te matotoru pakitara o te hua o te hua o te hua, me te whakakore i nga ngoikoretanga o te kounga.

Specifications

serial number	Material HDPE…	Mold closing oil cylinder(single cylinder)
serial number	Material HDPE…	Machine model:KGS120Z
Specifications
1	Max container capacity	1000 L
2	Output(dry Cycle)	300 PC/HR
3	Machine Dimension(L×W×H)	8.3 M ×3.4 M × 6.8 M
4	Machine weight	38 T
Clamping Unit
1	Clamping force	1200 KN
2	Mold platen size(W×H)	1300 MM×1900 MM
3	Platen openingstroke	600 MM-1600 MM
4	Platen moving stroke	700 MM
5	Max mold size(W×H)	1000 MM×2000 MM
6	Mold thickness	630 MM - 830 MM
Power
1	Servooil pump motor power	25 KW
2	Servo pump displacement	200 L/MIN
3	Blowpressure	0.8 Mpa
4	Air consumption	2 M²/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	110 KW -130 KW
Extruder unit
1	Screw diameter	120 MM
2	Screw L/D ratio	30 L/D
3	Melting capacit for HDPE	350 Kg/hr
4	Number of heating zone	6 ZONE
5	Screw heating power	32.5 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	90 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.8 KW
3	Maxdie-pin diameter	700(800) MM
4	Accumulator capacity	25(30) L
5	(PE)Accumulator weight	18(22) KG
